RMCWin supports three types of views. From the Windows menu, choose one of the three possible views at the top of the menu. Each view is described below:
Full Horizontal View:
This view displays the status, command, plot time, and parameter areas of all axes at once. The following diagram shows the positions of each area:
Full Vertical View:
This view displays the status, command, and parameter areas of all axes at once. The following diagram shows the positions of each area:
Half View:
This view displays either the status and command areas or the plot time and parameter areas of all axes at once. To switch between the status/command and plot time/parameter displays, use one of the following methods:
Press either CTRL+LEFT ARROW or CTRL+RIGHT ARROW.
On the Window menu, click Toggle Displayed Fields.
On the toolbar, click the Toggle Displayed Fields button (
).

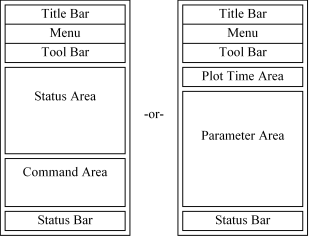

The following diagrams show the positions of each area in this pair of views:
