RMC75E Wiring

The RMC75E CPU module contains a connector for power, and two connectors for communications.

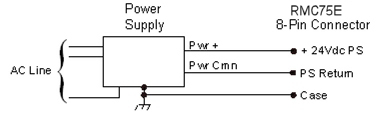

Wiring Power

The connector screws and wire clamp screws must be tightened to max 7 b-in (0.8Nm).

Wiring the Communications

USB Monitor Port

Use a standard USB cable to connect to the USB port. USB connector shielding is grounded with case ground.

RJ-45 Ethernet connector

Use a standard Category 5, 5e, or 6 cable with an RJ-45 connector to connect to the 10/100 Ethernet port.
